[ F 2024 ]
Instructor: Clayton Taylor
Cinematic Inspiration | Fantastic Mr. Fox ,
Wes Anderson
Vernon Infill Housing explores the cottage cluster typology within the city of Portland. Currently listed as a R 2.0 zoned parking lot adjacent to the Leaven Community Church, six individual units are arranged around interlaced courtyards. Through the play of solid and void within the site, courtyards become interfaced between units and provided spaces for community.
This project was designed alongside Rae McKenna, with all content represented being produced as my individual work.
[ Home + Church | Form ]

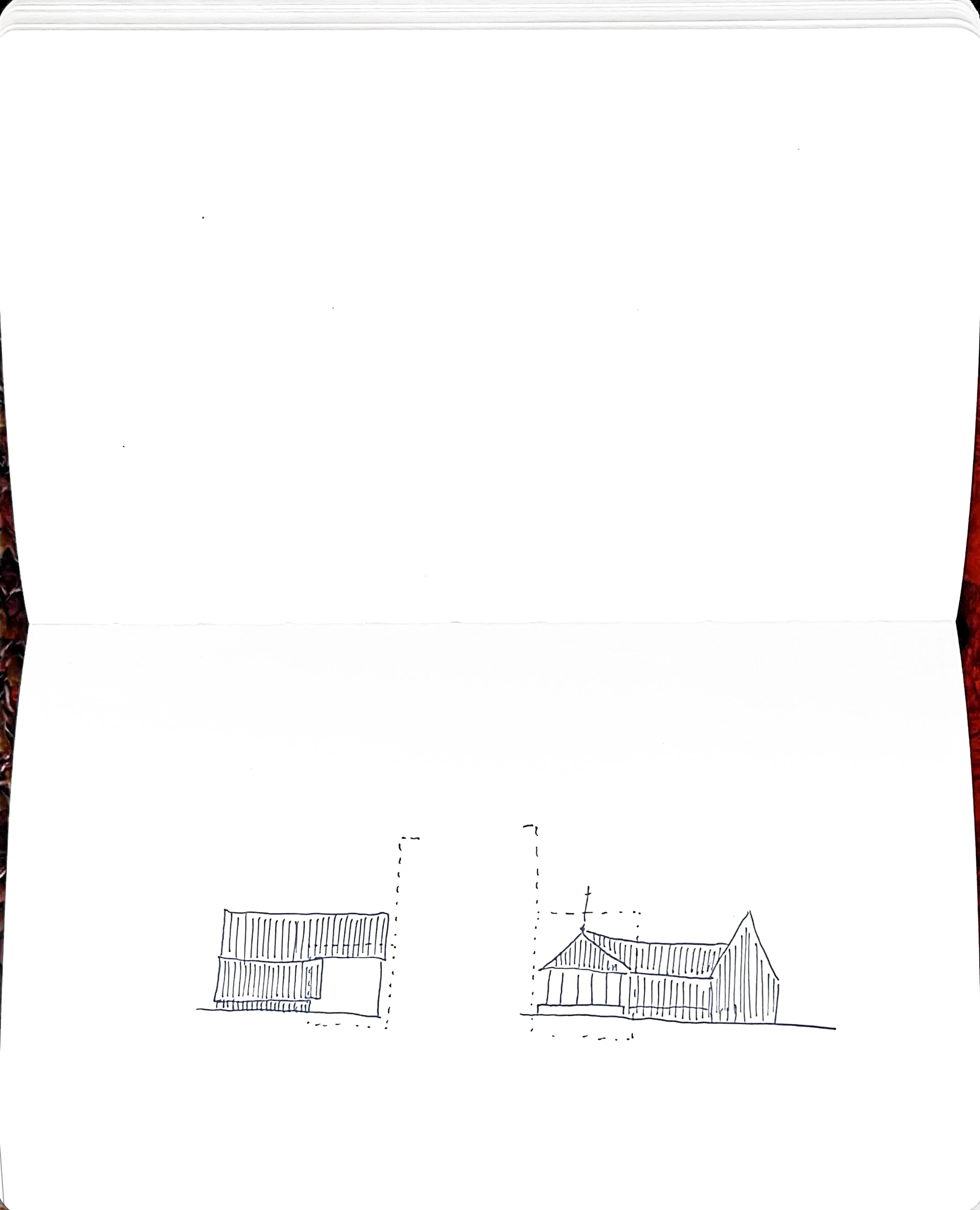

[ Home + Church | Site ]

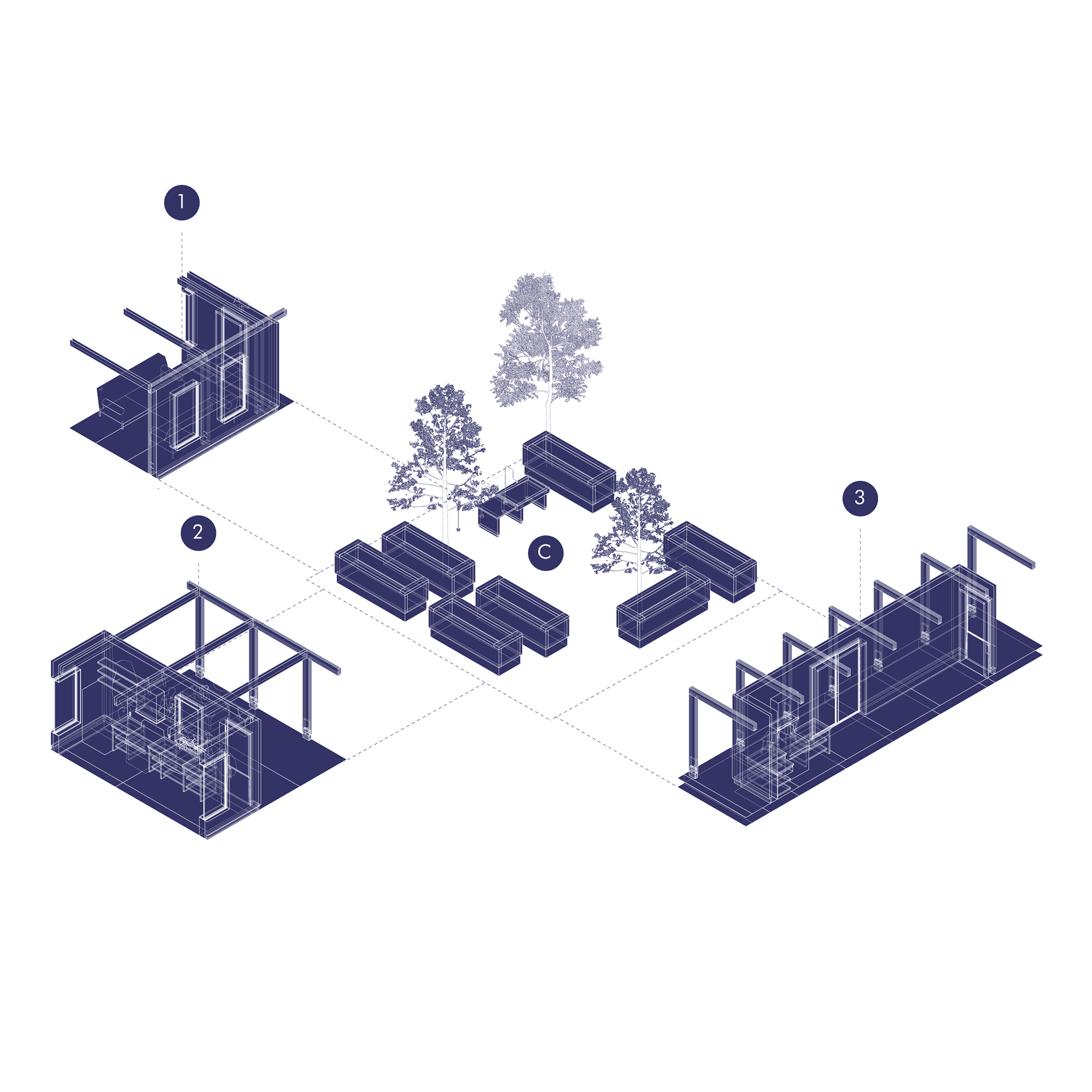

[ Orientation Around Courtyard Positioning ]
1 | example Living Room, indoor programming
2 | example Covered Porch, outdoor programming
3 | example Arcade, outdoor programming

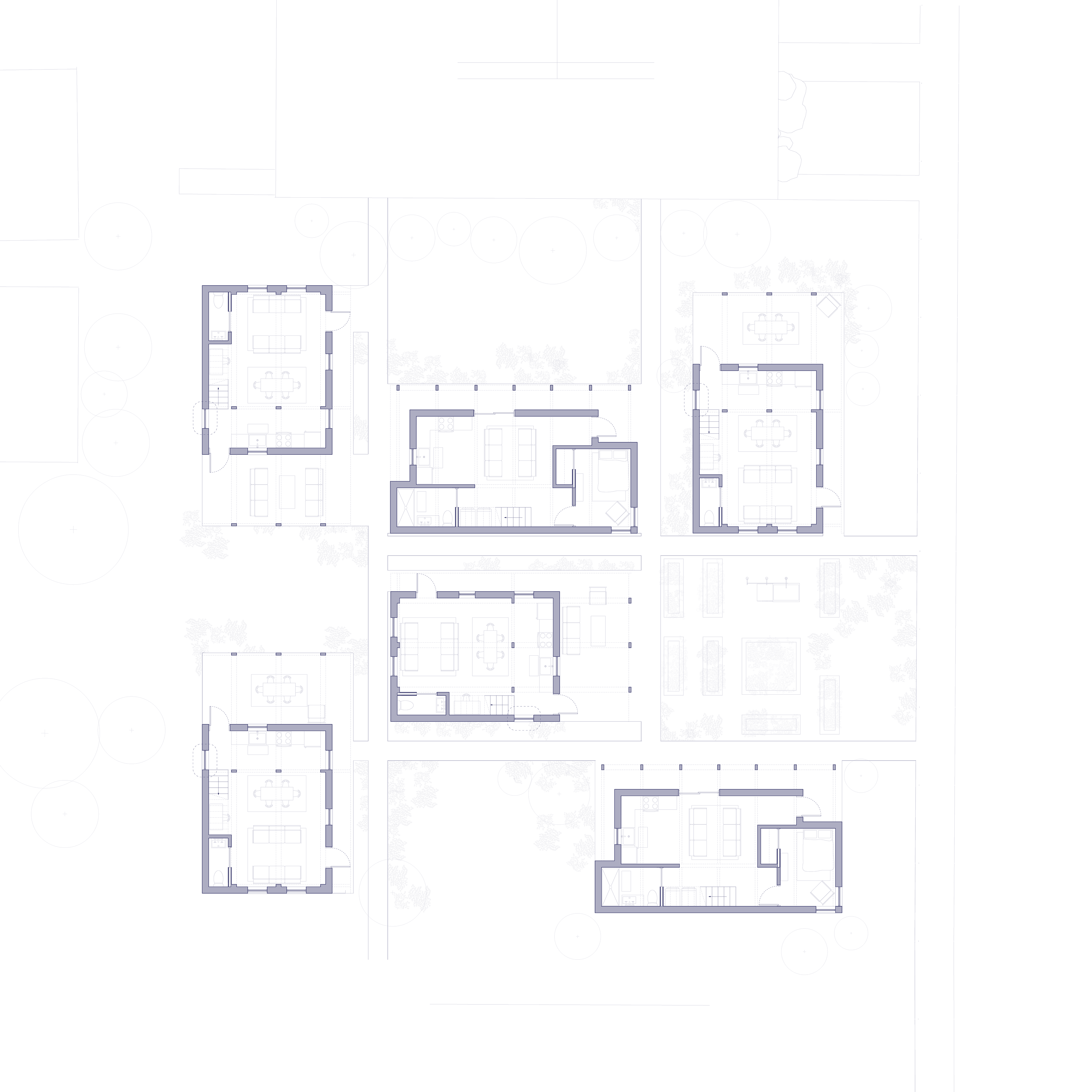

[ Ground Level Plan ]

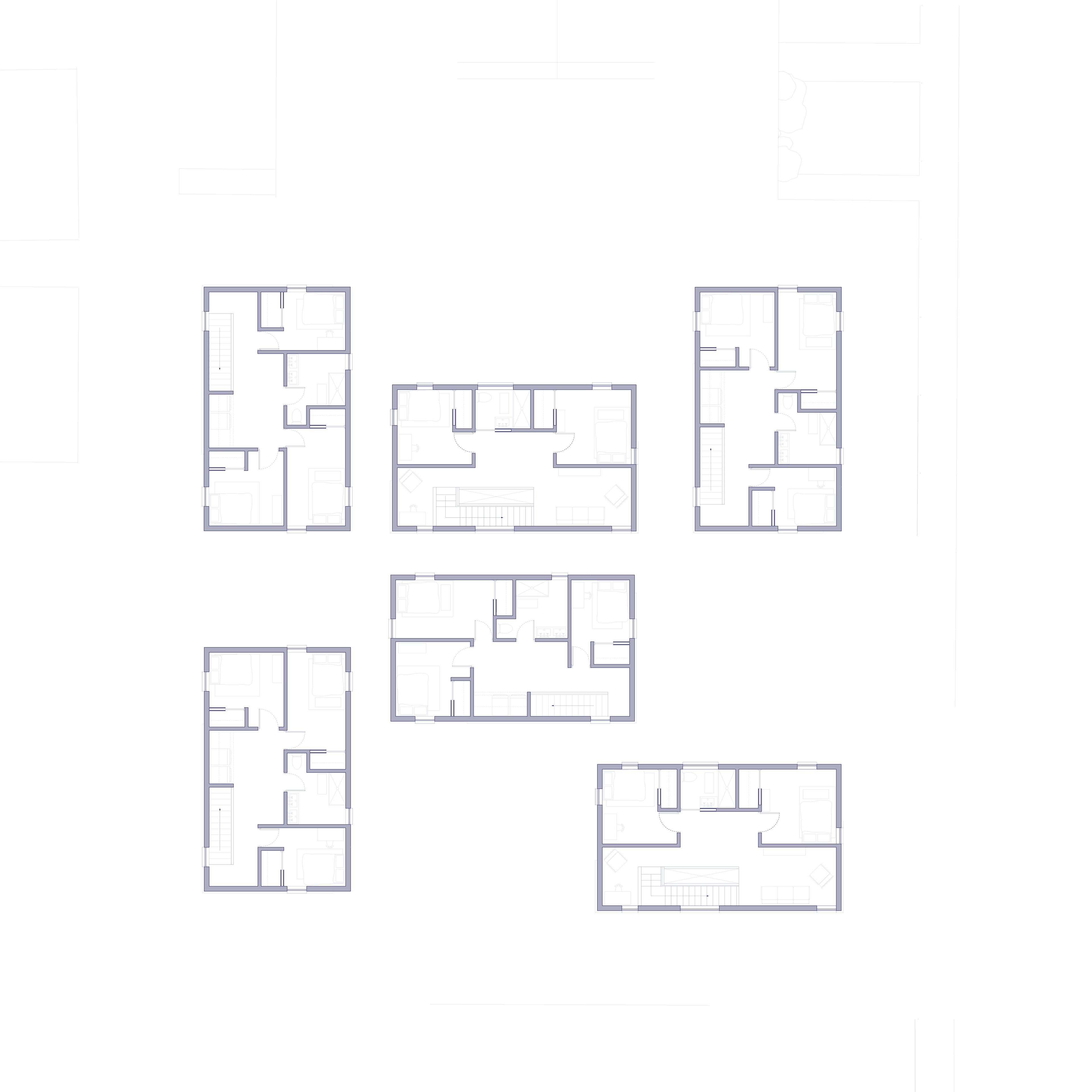

[ Upper Level Plan ]

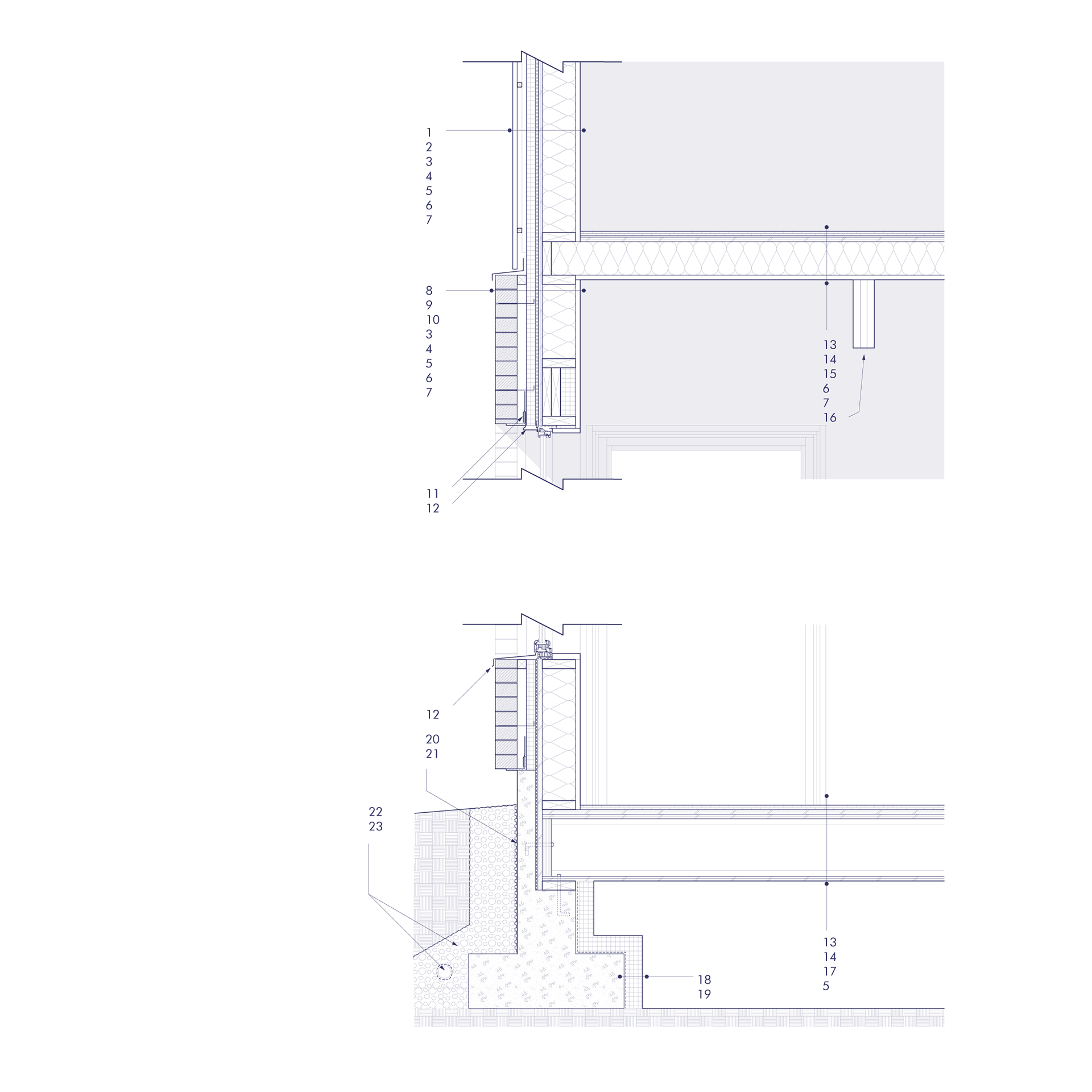

01 Exterior Wood Board Cladding, 0.75”
02 0.75” Furring strips, vertical + horizontal
03 Polyiso, 1.5”
04 Fluid-applied WRB
05 0.75” plywood
06 2 x 6 stud system, batt cavity infill
07 0.75” gypsum board
02 0.75” Furring strips, vertical + horizontal
03 Polyiso, 1.5”
04 Fluid-applied WRB
05 0.75” plywood
06 2 x 6 stud system, batt cavity infill
07 0.75” gypsum board
08 Face brick
09 1.5” airspace
10 Brick ledge
11 Counter flashing
12 Stainless steel flashing
09 1.5” airspace
10 Brick ledge
11 Counter flashing
12 Stainless steel flashing
13 0.75” hardwood, white oak
14 Double layer, 0.75” plywood
15 Acoustic mat
16 Glulam support beam, 4 x 12
17 Building felt behind joist hangers
14 Double layer, 0.75” plywood
15 Acoustic mat
16 Glulam support beam, 4 x 12
17 Building felt behind joist hangers
18 Vapor barrier
19 3” EPS
20 LAM waterproofing
21 Drain board + fabric
22 Drain rock
23 Perforated drain pipe
19 3” EPS
20 LAM waterproofing
21 Drain board + fabric
22 Drain rock
23 Perforated drain pipe

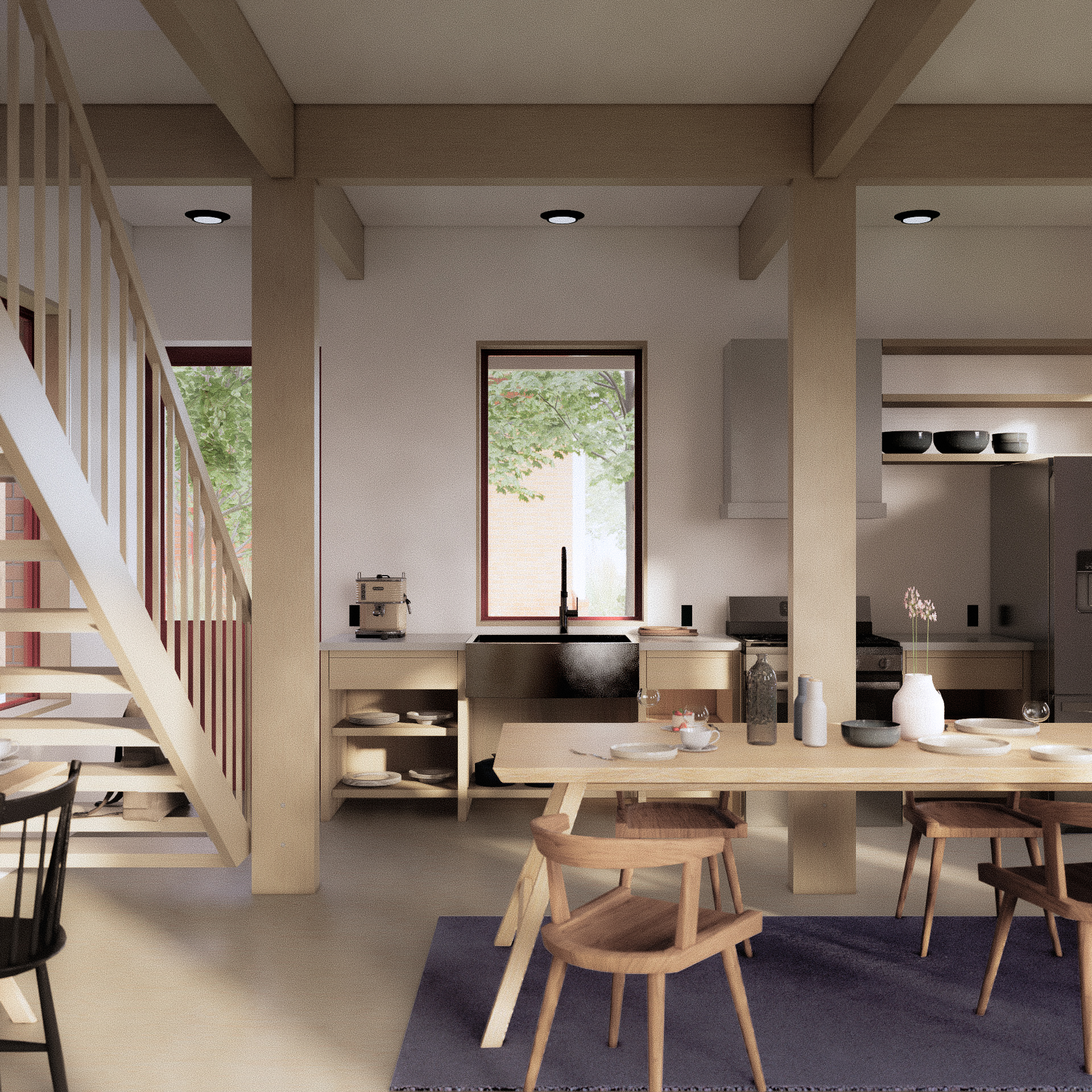

[ kitchen + dining room ]

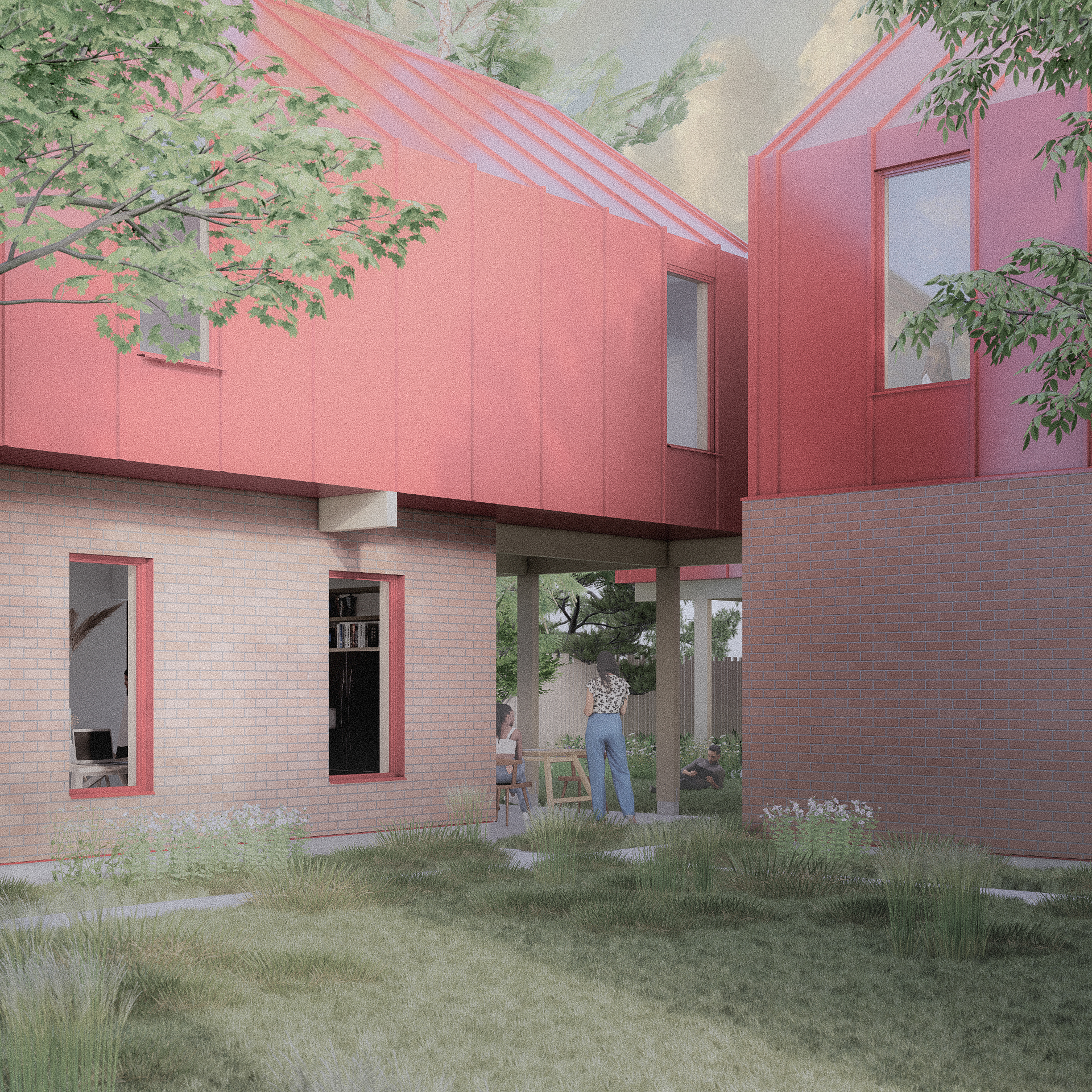

[ south courtyard view ]
