Trimester 12 | 15 [ 2023 ]
Instructor: Shalini Agrawal
Cinematic Inspiration | Spirited Away,
Hayao Miyazaki
Design Studio began with an investigative process into the history of Alton Baker Park in Eugene, Oregon, particularly the history of forced land seizure against Black Americans and Native Americans. Investigative history was then combined with a process of using collage to represent this research.
The following collages represent forms of ecological damaged performed on seized land, and serve as proposed interpretations of informing design.
The following proposed design serves as a process of land return to the Kalapuya people within Oregon, with the installation of agricultural and ecological pavilions to provide avenues of land cultivation and restoration.
Willamette River, Alton Baker
 + Indian Burning, 1851
[ Unattended Land ]
[ Unattended Land ]
[ Ecological Pavilion ]
[ Ecological Pavilion ]
[ Cultavative Process ]
[ Cultavative Process ]

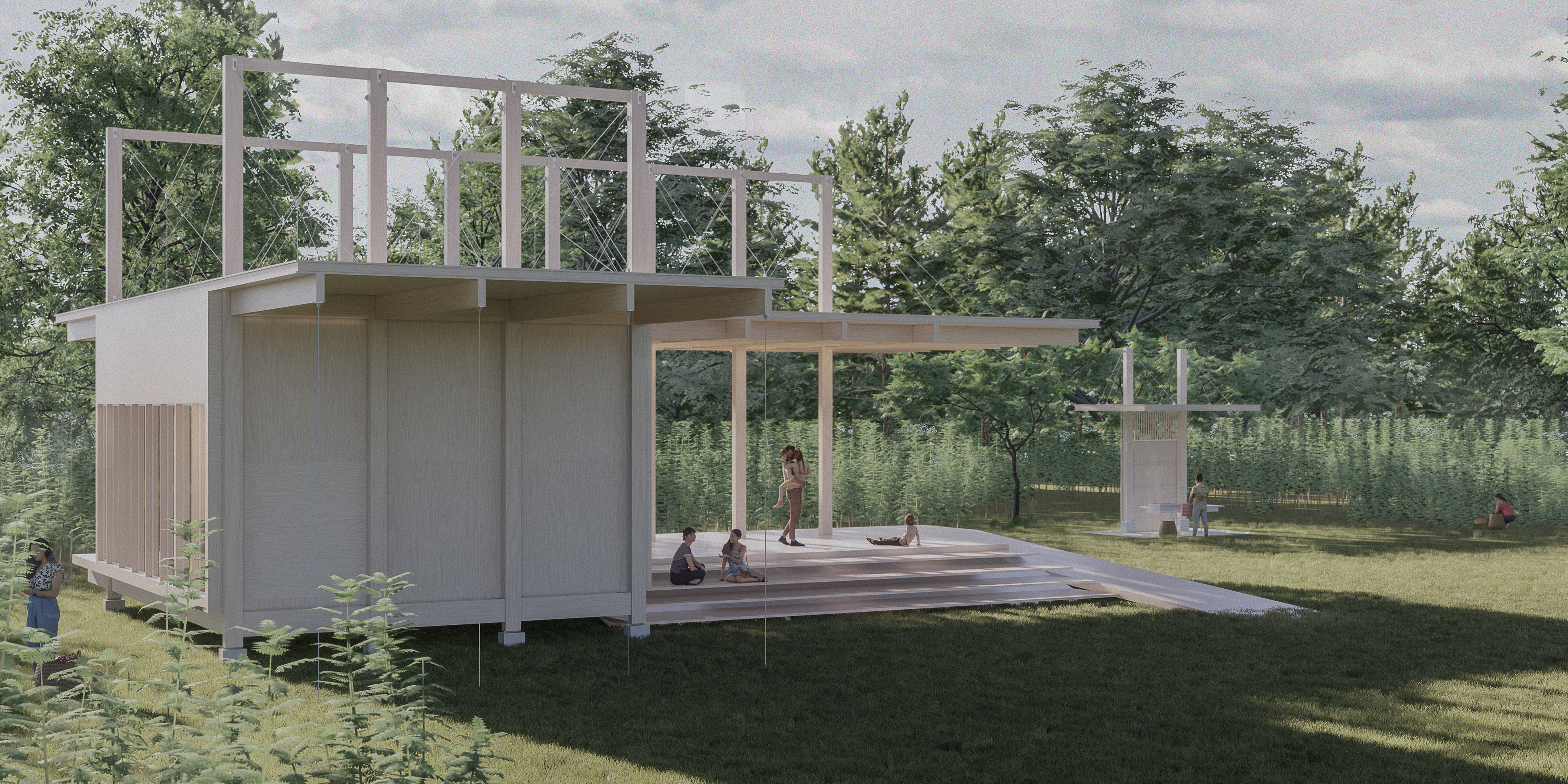

[ Land Back Architecture ]
[ Sanctuary Ground Plan ]
[ Sanctuary Ground Plan ]
[ Front Porch Ground Plan ]
[ Front Porch Ground Plan ]

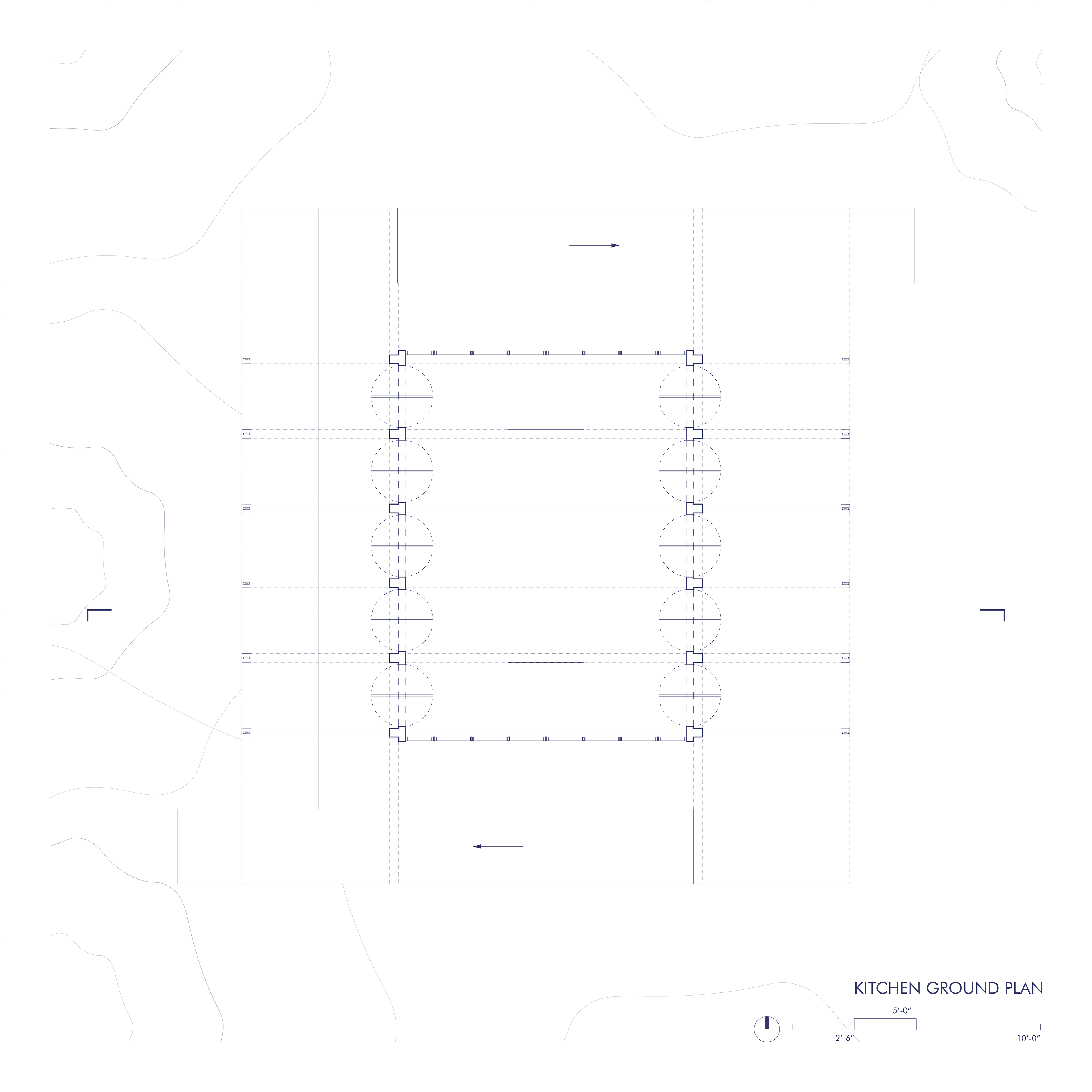

[ Kitchen Ground Plan ]
[ Kitchen Ground Plan ]

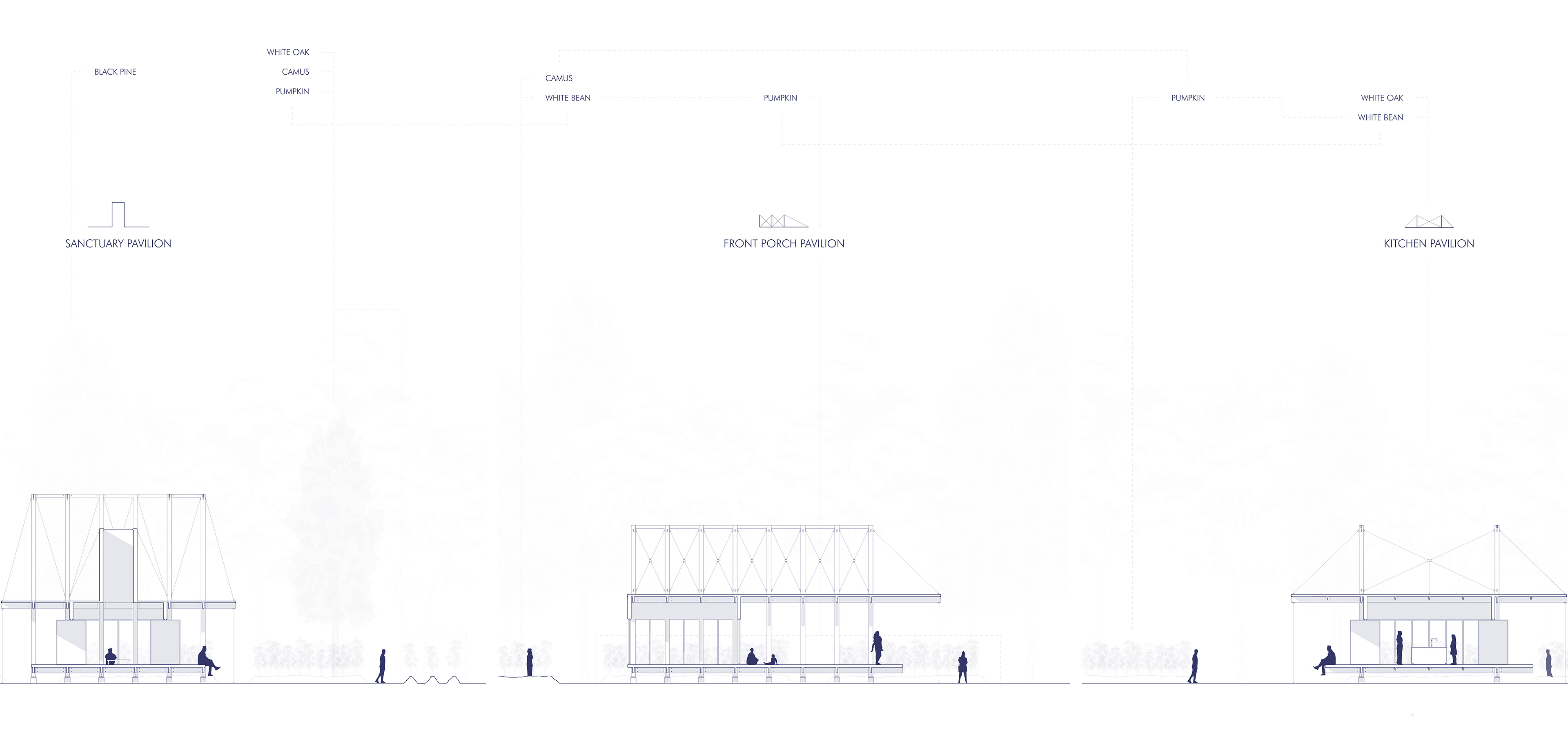

[ Plans at a glance ]

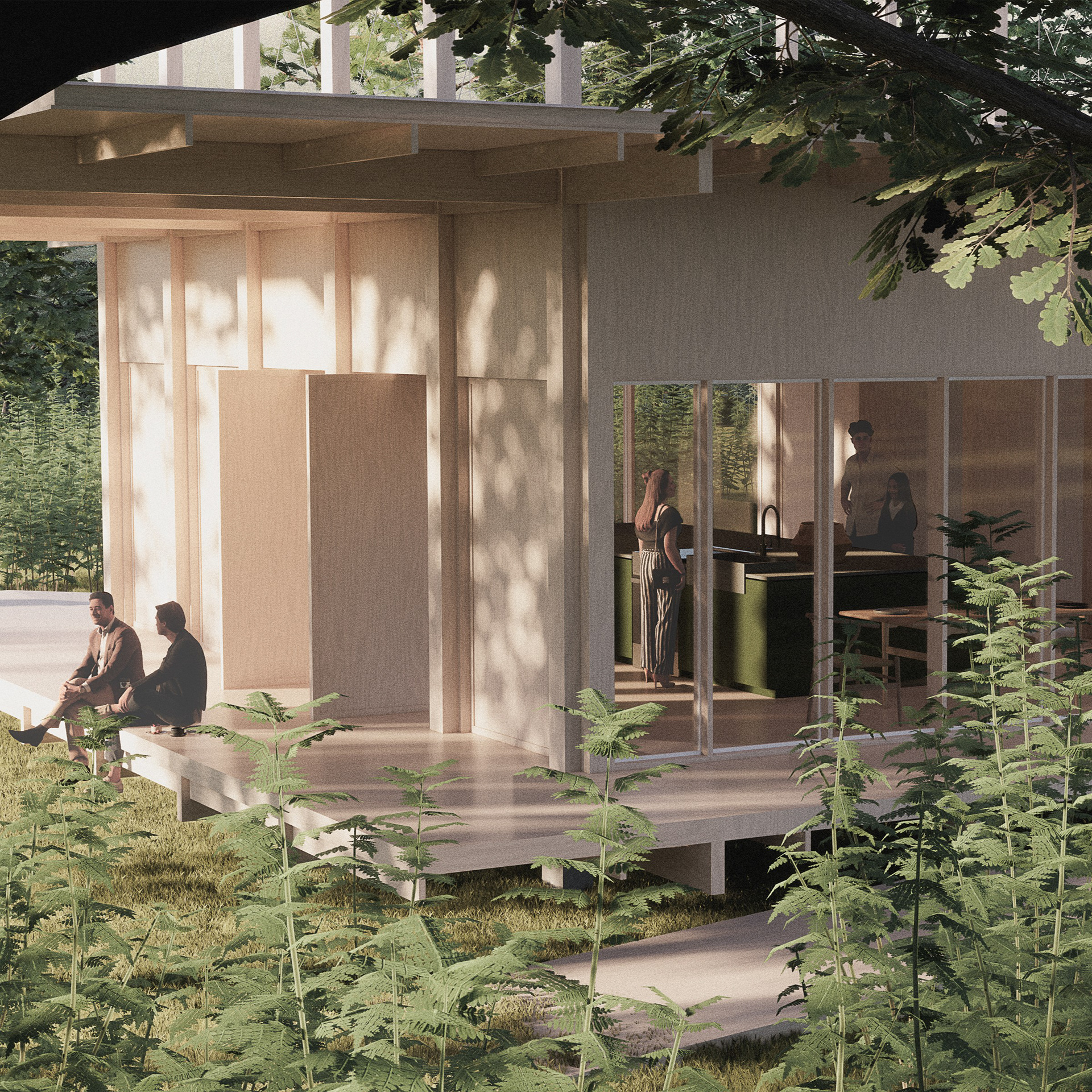

[ Kitchen Pavilion ]

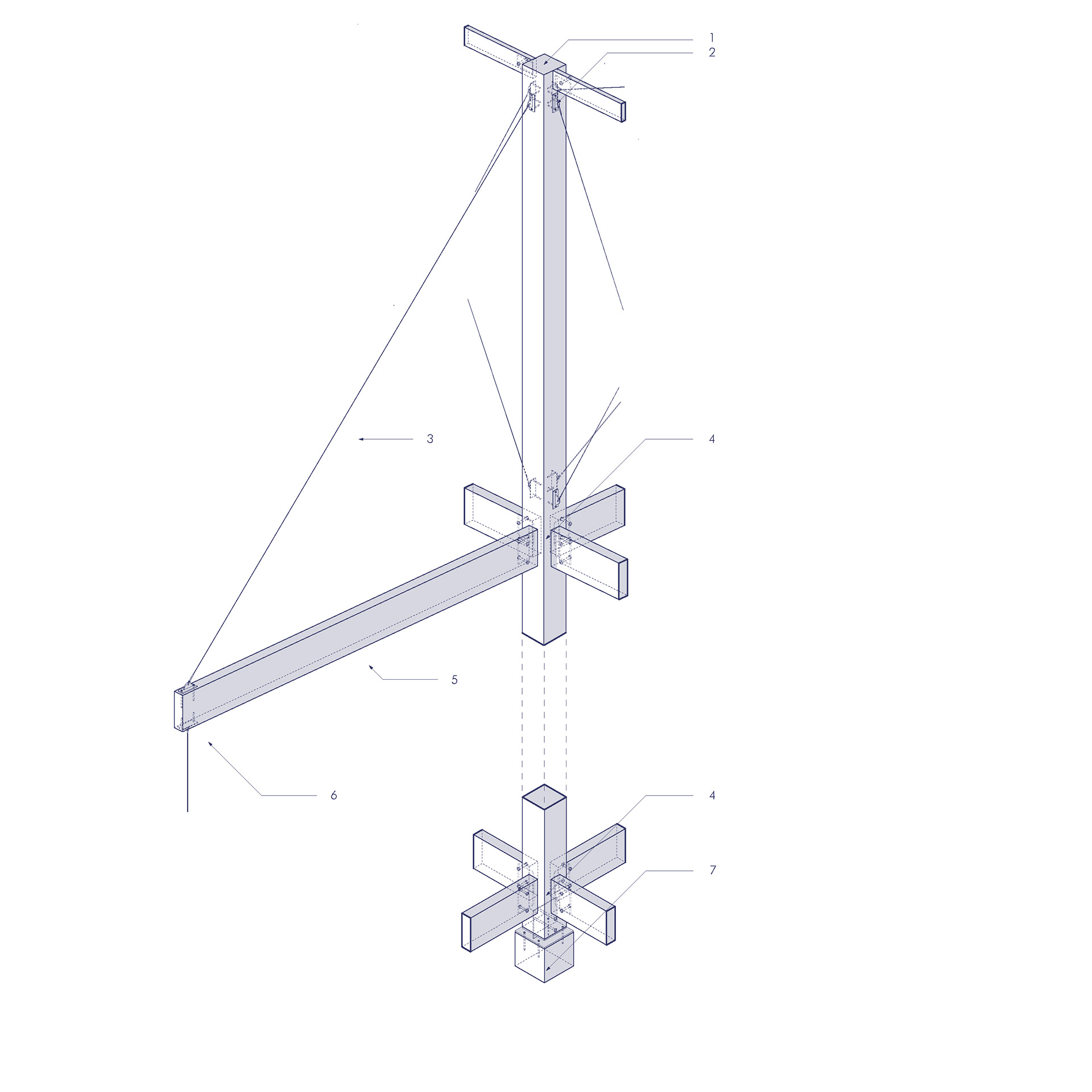

[ 1 ]   Truss system connected at post with hidden knife plate + screws
[ 2 ]   Cable tied into horizontal truss system
[ 3 ]   Cable tie perpendicular and connected to cantilevered post
[ 4 ]   Beams connected at notched post with knife plate + screws
[ 5 ]   Cantilevered beam
[ 6 ]   Cable tied at end of beam tied into 12" x 12" concrete base at ground
[ 7 ]   Concrete base in ground attached to post w/knife plate + screws

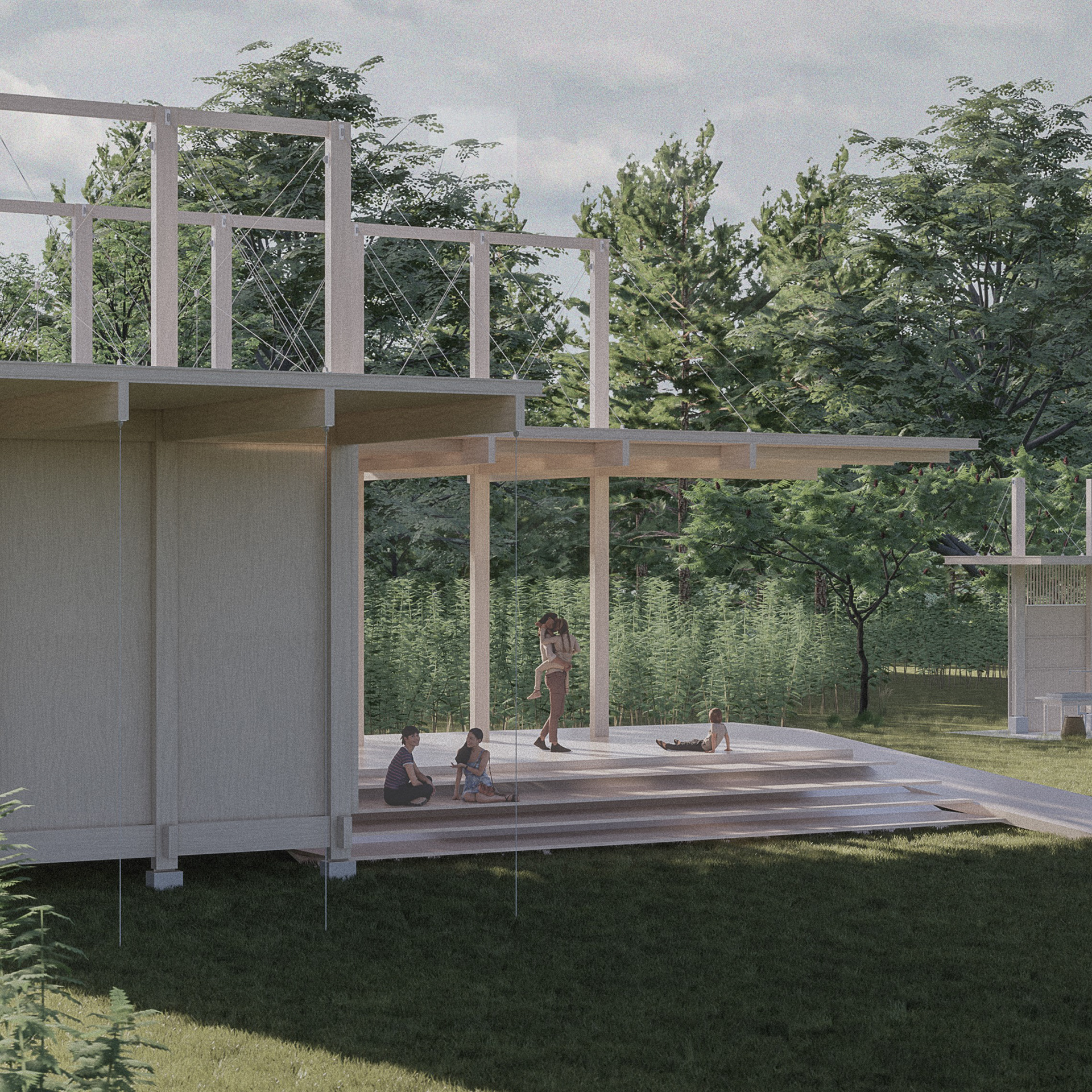

[ Front Porch Pavilion ]

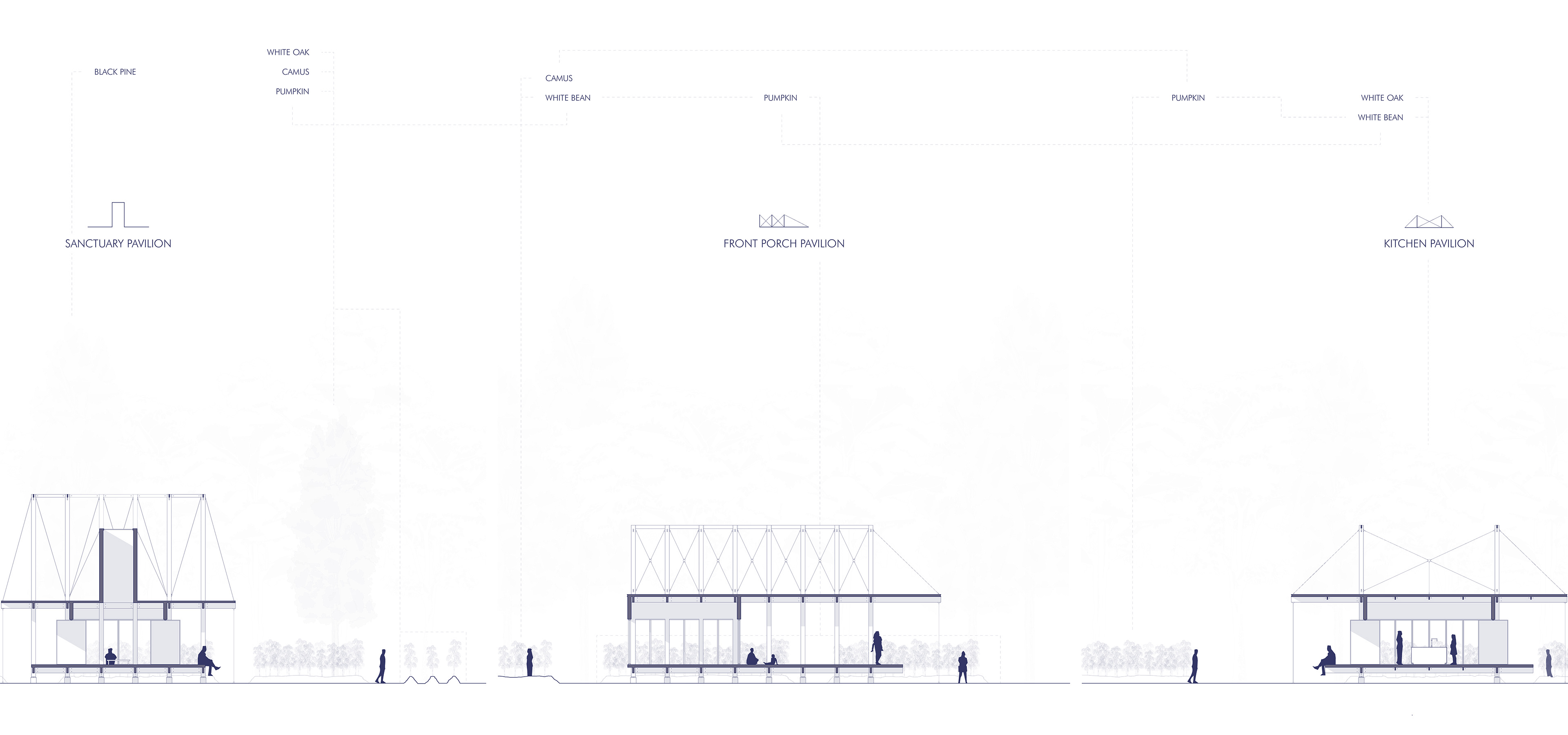

[ Cross Section ]
